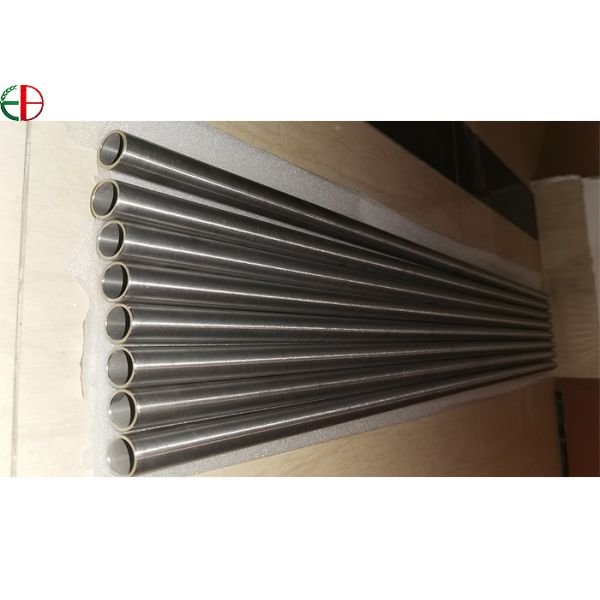

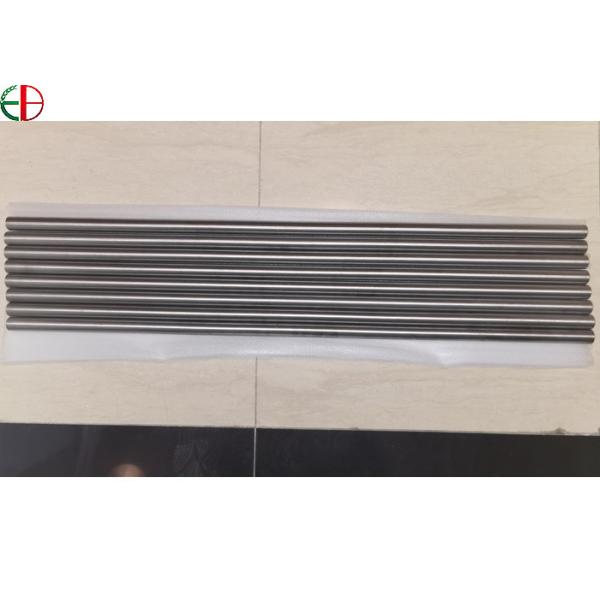

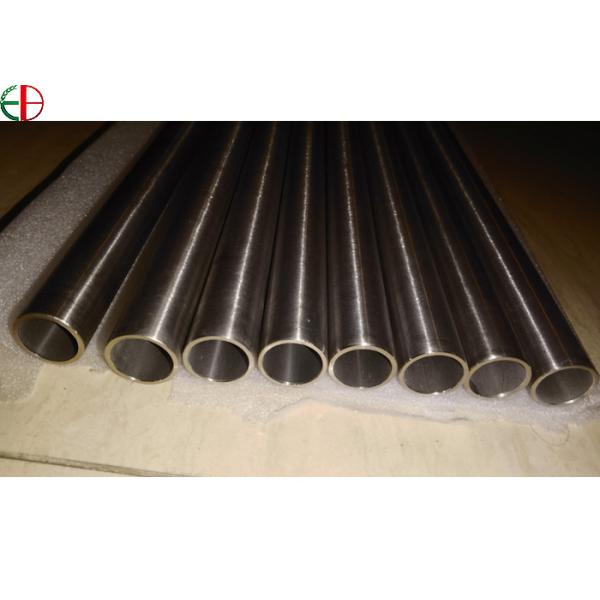

Factory Gr2 Titanium Pipe Prices Seamless Tube
Product Description:
Application:
1) General service industries (petroleum, food, chemical, paper,
fertilizer, fabric, aviation and nuclear)
2) Fluid, gas and oil transport
3) Pressure and heat transmission
4) Construction and ornament
5) Boiler heat exchangers
6) motorbycle and bike
1.Chemical requirements of titanium tube | ||||
Tensile Strength | Yeild Strength | Elongation | ||
Min | Max | |||
MPa | Kis | Ksi Mpa | Ksi Mpa | % |
Gr 1 | 240 | 35 | 20(138) | 45(310) |
Gr 2 | 345 | 50 | 40(275) | 65(450) |
Gr 3 | 450 | 65 | 55(380) | 80(550) |
Gr 7 | 345 | 50 | 40(275) | 65(450) |
Gr 9 | 620 | 90 | 70(483) | ... |
Gr11 | 240 | 35 | 20(138) | 45(310) |
Gr12 | 483 | 70 | 50(345) | ... |
Gr13 | 275 | 40 | 25(170) | ... |
Gr14 | 410 | 60 | 40(275) | ... |
2.Dimension and Tolerance of titanium tube | ||
Utside diameter, in.(mm) | Diameter tolerance, in.(mm) | Permissible variations , wall thinckness, t, % in.(mm) |
<1 (25.4) | ±0.004( ± 0.012) | ±10 |
1-1½(25.4-38.1) | ±0.005( ±0.127 ) | ±10 |
1½-2(38.1-50.8) | ±0.006( ± 0.152) | ±10 |
2-2½(50.8-63.5) | ±0.007( ± 0.178) | ±10 |
2½-3½(63.5-88.9) | ±0.010( ± 0.254) | ±10 |
Product Details:
|
|
